Camera inspection: $300–$750
The first and non-negotiable step. Most operators credit it against the works if you proceed.
No-Dig Drain Repair
Pipe Relining
Specialists In
North Ryde
We camera the line first, show you what is actually wrong, and then tell you whether relining is the right answer. Often it is. Where the pipe has collapsed or lost its fall, it is not, and we will say so rather than sell you a liner that disappoints.
- Licence 368473C, fully insured

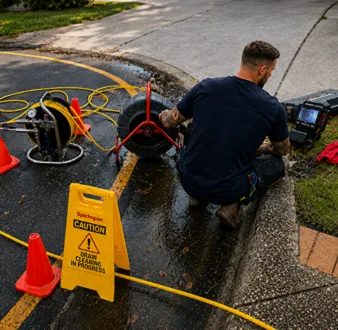

- CCTV survey before any quote
- Nothing dug up, nothing reinstated
When A Liner Is The Right Repair In North Ryde
A resin-saturated liner is drawn into the existing pipe through an access point, inflated so it presses against the wall, and cured until it hardens. What you are left with is a continuous pipe inside the old one, with no joints along its length and a slightly smaller bore than the original.
Nothing is excavated, and the cured surface is smoother than the clay or concrete it lines, so flow is typically maintained or improved despite the small loss of diameter. On a property where a driveway, mature garden or paving sits over the line, that is the whole argument.
Before you spend on the bathroom, look at the drain
The most expensive time to discover a failing sewer is after new tiling has gone down. The second most expensive is after the slab for an extension has been poured over it.
A camera run costs a fraction of either and takes an hour. If you are getting quotes for a renovation on a house of this age, book it in the same fortnight. Where relining is needed it is far cheaper before the works than after.
The stain that appears two floors down
Water tracks along beams and slab falls, so the lot reporting the damage is often nowhere near the lot with the fault. Opening ceilings on a guess is how a small repair becomes three angry owners.
Camera and non-destructive location come first for exactly that reason. Once the defect is located and measured from a known point, the repair is a defined job and the liner goes in without exploratory demolition.
Infiltration on a high water table
Where the water table sits close to the pipe, every open joint is an entry point. The line runs fuller than it should year-round, silt comes in with the water, and the system behaves as though it is undersized when it is simply leaking inward.
Stormwater runs hard off the ridge toward the river, dragging leaf litter and silt into pits and pipes along the bushland edge.
Sealing the run changes that immediately, and it is one of the clearest before-and-after results relining produces. It is also the case most often missed, because nothing looks broken from the surface.
Long runs and where the access points sit
Properties on a slope often have long drainage runs, sometimes crossing the whole block to reach the main. The practical questions are where the inspection openings are and whether the liner can be drawn through in one length or needs a second access.
That is worth establishing before quoting. A single long run costs less per metre than the same distance broken into stages, and the difference is decided by access, not by the pipe.
Old is not the same as beyond saving
People are often surprised that a drain laid before the war is a relining candidate rather than a replacement. Age alone does not decide it. A clay line with a sound barrel and tired joints is close to the best case for a liner.
The cases that genuinely need excavation are different: a collapsed section, a run that has lost its fall, or a pipe crushed out of round. A camera separates those in an hour, and the answer changes the cost by a multiple.
What it costs in North Ryde
Per metre for a liner, $500–$900
Domestic sewer across Sydney in 2026. Longer single runs sit at the lower end of it.
A junction or patch repair, $1,500–$4,000
Seals one defect. Right where the rest of the run is sound and the ground is stable.
A whole domestic line, $6,000–$15,000
Length, diameter and how many branches need reinstating are what move the number inside that band.
Digging it up, from $2,500 plus making good
Excavation is only half the cost. Replacing the driveway or garden above it is the other half.
These are market ranges, not our price. Nothing is quoted before the survey, and nothing starts before you agree it. Figures here are indicative of the 2026 Sydney market rather than a quote from us, you get your own number as a fixed price before any work starts.
From Survey To Finished Liner
Step 01
Step 01
Camera The Line

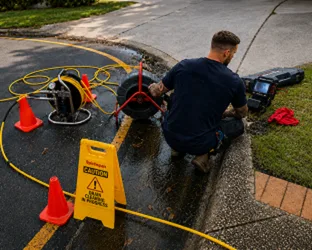

A CCTV survey establishes the material, the diameter, where the defects are and how far they sit from the access. You see the footage, and it is what the quote is built from.
Step 02
Agree The Method
Patch or full length, and occasionally excavation instead. We will tell you when digging is the better answer even though it is the bigger quote.
Step 03
Clean, Line And Cure
The run is jetted so the liner bonds to pipe rather than debris, the liner is installed through the existing access, and it cures in place. Most domestic jobs are a single day.
Step 04
Reinstate And Re-Camera
Every branch the liner passed is reopened from inside, then the run is cameraed again so you can see it is continuous and the junctions are clear.
Rather Talk It Through First?
Leave your details and a licensed plumber will call back to arrange the survey. No quote is given before someone has seen inside the pipe.
Relining, Answered Properly
Straight answers on price, durability and when to dig instead.
No. A liner takes the shape of the pipe it cures inside, so it cannot correct a run that has sagged into a belly or lost its fall, and it has nothing to line against where a section has collapsed. Badly deformed or crushed pipe needs replacing. What relines well is the common case: a sound barrel with cracked or open joints, which is most older clay drainage.
Relining is priced per metre and the range across Sydney in 2026 is roughly $500 to $900 a metre for a domestic sewer, with junction reinstatement and access usually quoted separately. A short patch repair over a single defect commonly lands between $1,500 and $4,000, and a full-length domestic run more often sits between $6,000 and $15,000. The honest comparison is not liner against nothing: it is liner against excavation plus reinstating whatever sits on top of the pipe.
Cured-in-place liners are generally rated at around fifty years, comparable to a new pipe and usually longer than the remaining life of the earthenware they are installed into. The reason the figure is that high is structural rather than promotional: a liner has no joints along its length, and joints are what fail. Most warranties on the workmanship run considerably shorter than the rated life of the material, so ask what you are actually being given.
One of the best. Houses of that era were generally drained in vitrified clay, laid well, and then left alone for six or seven decades. The barrel is usually still round and sound while the joints have had seventy years of ground movement and root pressure. That is close to the textbook case for a liner.
Generally it turns on whether the pipework serves your lot alone or more than one. A branch inside your walls feeding only your bathroom is usually yours; the stack it joins and anything in common property usually is not. Settle it before the quote. Relining often makes the conversation easier because it is cheaper than the alternative for a shared line and needs no ceilings opened.
Where the water table sits close to the pipe, every open joint is an entry point for groundwater. The line runs fuller than it should year-round and silt comes in with the water, so the system behaves as though it is undersized when it is actually leaking inward. Sealing the run is one of the clearest before-and-after results relining produces.
Often, and it costs less per metre when it can. Whether it is one length or staged is decided by where the inspection openings sit and whether the liner can be drawn through, not by the distance itself. Properties on a slope frequently have long runs crossing the block, so it is worth establishing access before quoting.
Talk To A Relining Specialist In North Ryde
Ring us or leave your details. You will get a time for the inspection, not a price invented over the phone.
